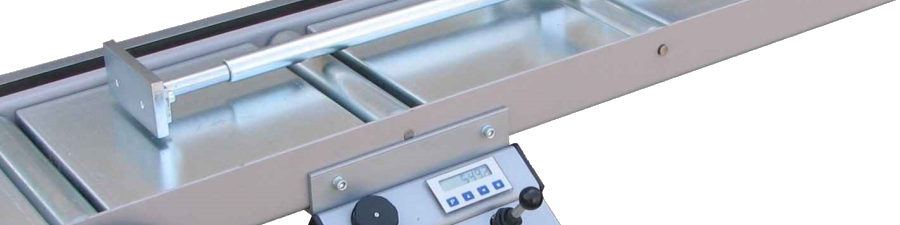

The length measuring system PE 50 h can be operated with a manually operated wheel. To offer greater stability, the tiltable stop is mounted on a double arm setup. The reading of the measurement happens directly at the stop through a magnet tape and sensor, offering a very high precision level. The carriage with which you can move the stop can be locked in place pneumatically to prevent accidental movements.
The measuring system can be deliverey with a roller conveyor of the type RB300 or RB400, offering a width of the rolls of either 209 or 407 mm. In both cases the distance between each roll is 250mm and the conveyor can carry a maximum load of 200 kg/m. The systems standard coloring is RAL 7016.
Available lengths:
Measuring length: 1000 mm – Gesamtlänge System: 1400 mm
Measuring length: 2000 mm – Gesamtlänge System: 2400 mm
Measuring length: 3000 mm – Gesamtlänge System: 3400 mm
Measuring length: 4000 mm – Gesamtlänge System: 4400 mm
Measuring length: 5000 mm – Gesamtlänge System: 5400 mm
Measuring length: 6000 mm – Gesamtlänge System: 6400 mm
Measuring length: 7000 mm – Gesamtlänge System: 7400 mm
